Product Description

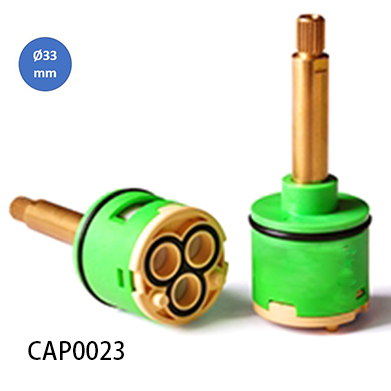

CAP0023 Ø33mm Diverter Cartridge

3-Way diverter without Distributor
Packing: 100 Pcs/ Carton
Carton size: 48 * 25 * 19cm, NW: 6.5 kgs, GW: 7.5 kgs.
  • CAP0023 Diverter Cartridge 33mm OD
  • CAP0023 Diverter Cartridge 33mm OD
  • CAP0023 Diverter Cartridge 33mm OD
  • CAP0023 Diverter Cartridge 33mm OD
  • CAP0023 Diverter Cartridge 33mm OD
Product Description
Ø33mm 3-Way diverter
Without Distributor
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge
Max. rotary angle 360°
Recommended nut tightening torque 8~10 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test ≧15,000cycles
(ASME A112.18.1)
Flow rate
Water
pressure		 Water Flow Rate
(L/min)
1 bar 17.00
2 bar 22.70
3 bar 25.5
