Product Description
Ø35mm Ceramic Cartridge
House Open Type
Without Distributor
  • CAP0047 Ceramic Cartridge Ø35mm OD
  • CAP0047 Ceramic Cartridge Ø35mm OD
  • CAP0047 Ceramic Cartridge Ø35mm OD
  • CAP0047 Ceramic Cartridge Ø35mm OD
  • CAP0047 Ceramic Cartridge Ø35mm OD
Product Description
Ø35mm Ceramic Cartridge
House Open Type
Without Distributor
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm

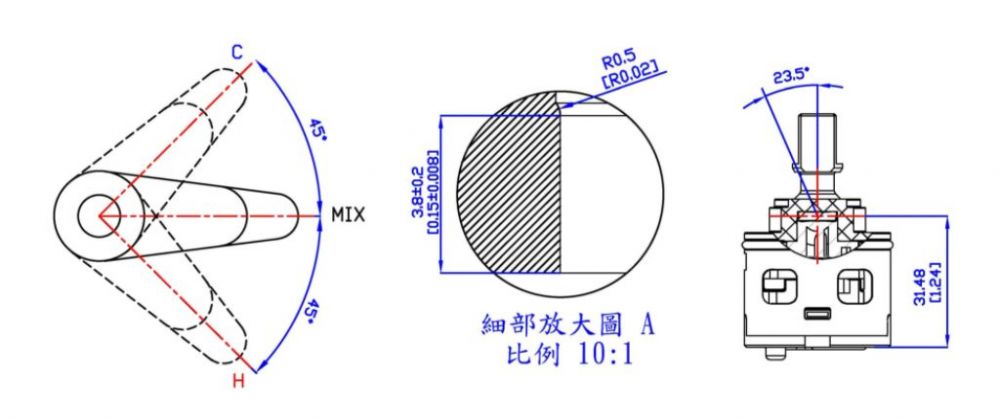

Technical characteristics of the cartridge
Max. opening angle 23.5°
Max. rotary angle 90°
Recommended nut tightening torque 8~10 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000 cycles (EN817)
Flow rate
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 15.80 15.80 21.00
2 bar 21.52 21.52 28.80
3 bar 26.40 26.40 34.60
