Product Description

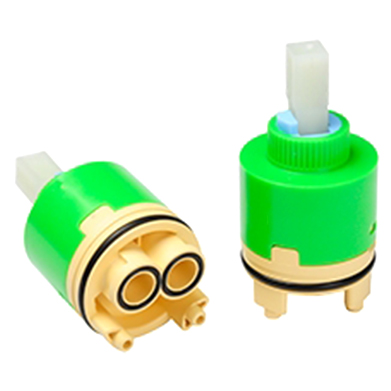

Ø40mm Ceramic Cartridge
Energy-Saving Cartridge
With Distributor
Option : Temp. Adjuster, Noise Reducer
  • CAP0052Ceramic Cartridge  Ø40mm OD
  • CAP0052Ceramic Cartridge  Ø40mm OD
  • CAP0052Ceramic Cartridge  Ø40mm OD
  • CAP0052Ceramic Cartridge  Ø40mm OD
  • CAP0052Ceramic Cartridge  Ø40mm OD
Product Description
Ø40mm Ceramic Cartridge
Energy-Saving Cartridge
With Distributor
Option : Temp. Adjuster, Noise Reducer
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness >1000 HV
Flatness <0.6 μm
Technical characteristics of the cartridge

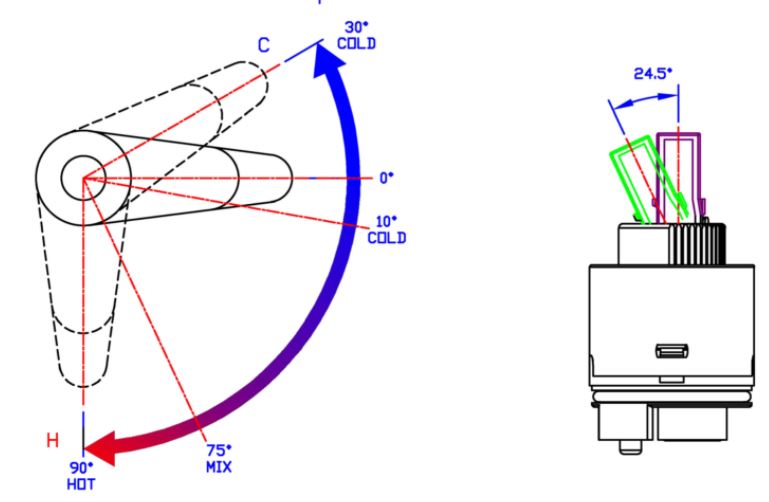

Max. opening angle 24.5°
Max. rotary angle 120°
Recommended nut tightening torque 10~12 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000 cycles (EN817)
Flow rate
Water
pressure
Hot water
(L/min)
Cold water
(middle position)
(L/min)
Mixing
(L/min)
1 bar 11.60 10.50 16.20
2 bar 16.20 14.40 22.00
3 bar 19.20 17.40 26.00
