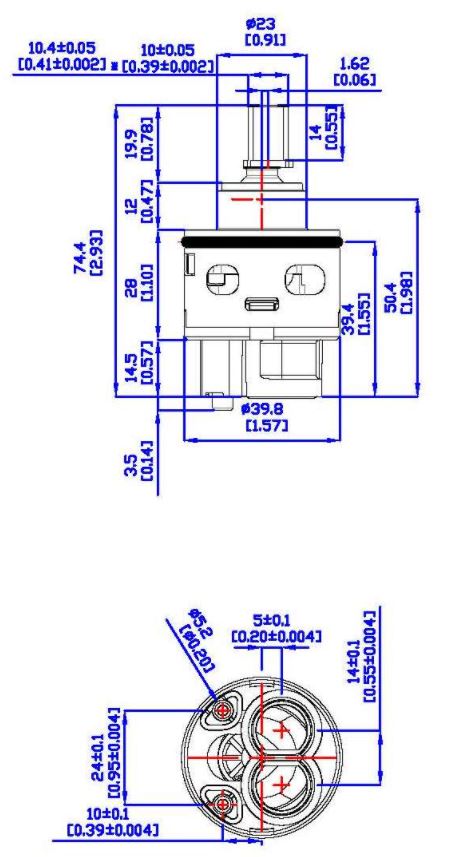

• CAP0054 Ceramic Cartridge Ø40mm OD

•
•
•
•

Product Description

Ø40mm Ceramic Cartridge
House Open Type

With Distributor

•
•
•
•

Inquiry Prev Next

Product Description

Ø40mm Ceramic Cartridge
House Open Type

With Distributor

Product Specification

Technical characteristics of the ceramic discs
Material	AL2O3 92%~96%
Surface roughness	Ra 0.1 ~ Ra 0.3 μm
Hardness	＞1000 HV
Flatness	＜0.6 μm
Technical characteristics of the cartridge

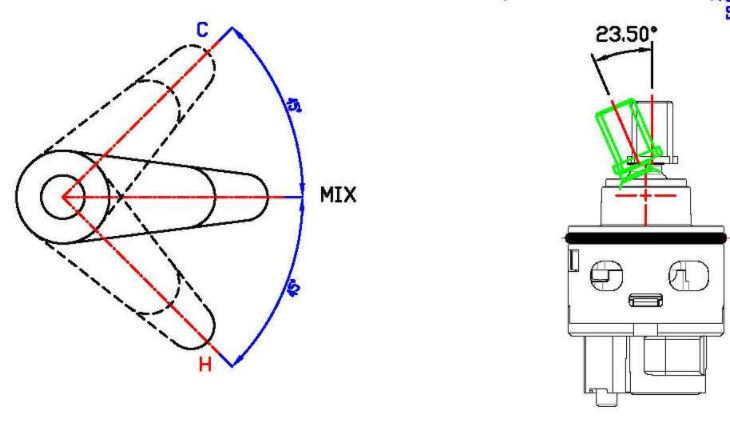

Max. opening angle	23.5°
Max. rotary angle	90°
Recommended nut tightening torque	10~12 N.m
Water resistance pressure	350~500 psi
Max. temperature	90℃(194℉)
Endurance test	500,000 cycles (ASME A112.18.1) 70,000cycles (EN817)
Flow rate
Water pressure	Hot water (L/min)	Cold water (L/min)	Mixing (L/min)
1 bar	16.69	16.68	27.76
2 bar	22.77	22.76	38.28
3 bar	28.31	28.32	45.44
