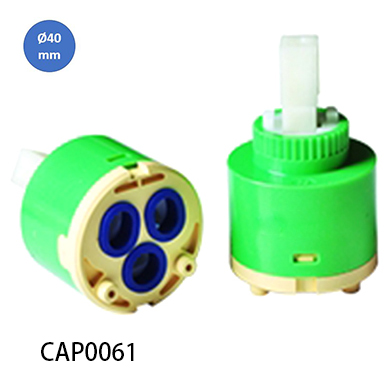

CAP0061 Ceramic Cartridge 40mm OD

  • CAP0061 Ceramic Cartridge 40mm OD
  • CAP0061 Ceramic Cartridge 40mm OD
  • CAP0061 Ceramic Cartridge 40mm OD
  • CAP0061 Ceramic Cartridge 40mm OD
Product Description

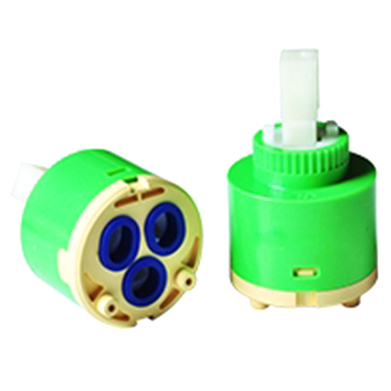

Ø40mm Ceramic Cartridge
Low Torque Structure Type(Thick Base Seal)
Without Distributor
Option :Temp. Adjuster, Noise Reducer
  • CAP0061 Ceramic Cartridge 40mm OD
  • CAP0061 Ceramic Cartridge 40mm OD
  • CAP0061 Ceramic Cartridge 40mm OD
  • CAP0061 Ceramic Cartridge 40mm OD
Product Description
Ø40mm Ceramic Cartridge
Low Torque Structure Type(Thick Base Seal)
Without Distributor
Option :Temp. Adjuster, Noise Reducer
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge

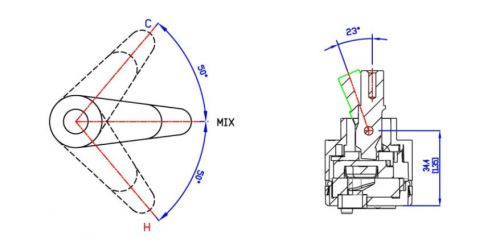

Max. opening angle 23°
Max. rotary angle 100°
Recommended nut tightening torque 10~12 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000cycles (EN817)
Flow rate
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 15.10 14.90 15.80
2 bar 20.00 20.60 21.60
3 bar 21.80 24.70 25.90
