Product Description

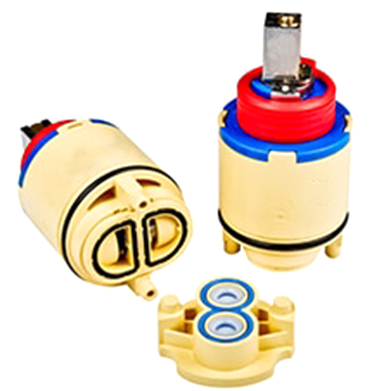

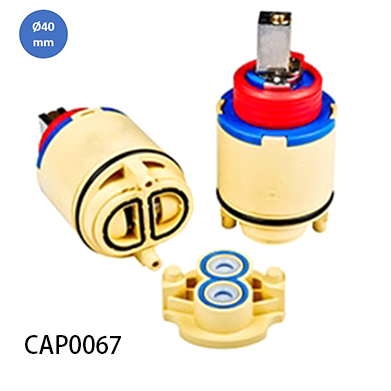

NEW Ø40mm Pressure Balance Cartridge
Back to Back 180° Reverse Type
With Distributor
Option : Check Valve Set
NEW Ø40mm Pressure Balance Cartridge
Back to Back 180° Reverse Type
With Distributor
Option : Check Valve Set
★ Conform with 2018 " California Energy Commission (CEC)" New Standard
  • CAP0067 Pressure Balance Cartridge Ø40mm OD
  • CAP0067 Pressure Balance Cartridge Ø40mm OD
  • CAP0067 Pressure Balance Cartridge Ø40mm OD
  • CAP0067 Pressure Balance Cartridge Ø40mm OD
  • CAP0067 Pressure Balance Cartridge Ø40mm OD
Product Description
NEW Ø40mm Pressure Balance Cartridge
Back to Back 180° Reverse Type
With Distributor
Option : Check Valve Set
Product Feature
★ Conform with 2018 " California Energy Commission (CEC)" New Standard
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness >1000 HV
Flatness <0.6 μm
Technical characteristics of the cartridge

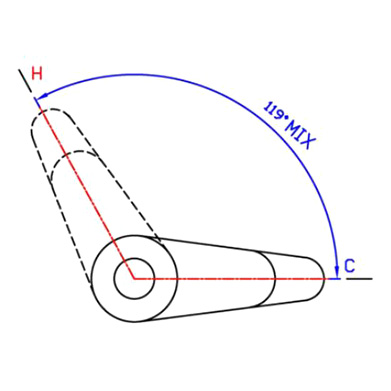

Max. rotary angle 119°
Recommended nut tightening torque 10~12 N.m
Water resistance pressure 500 psi
Max. temperature 90℃(194℉)
Endurance test 20,000 cycles (ASSE 1016-Piston)
80,000 cycles (ASSE 1016-Disc)
Flow rate
Water pressure Mixing
(L/min)
1 bar 10.00
2 bar 16.00
3 bar 20.20
