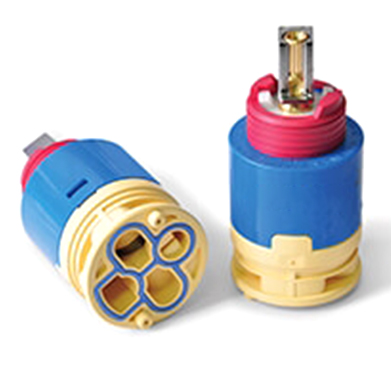

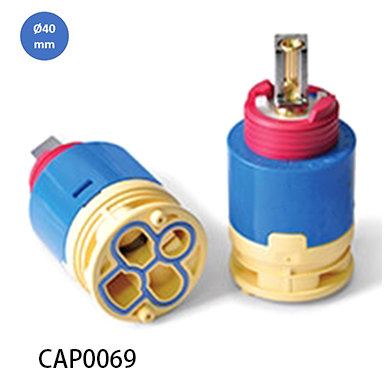

CAP0069 Pressure Balance Cartridge Ø40mm OD

  • CAP0069 Pressure Balance Cartridge Ø40mm OD
  • CAP0069 Pressure Balance Cartridge Ø40mm OD
  • CAP0069 Pressure Balance Cartridge Ø40mm OD
  • CAP0069 Pressure Balance Cartridge Ø40mm OD
  • CAP0069 Pressure Balance Cartridge Ø40mm OD
Product Description
NEW Ø40mm Pressure Balance Cartridge
Back to Back 180° Reverse Type
Without Distributor
Option : Noise Reducer
  • CAP0069 Pressure Balance Cartridge Ø40mm OD
  • CAP0069 Pressure Balance Cartridge Ø40mm OD
  • CAP0069 Pressure Balance Cartridge Ø40mm OD
  • CAP0069 Pressure Balance Cartridge Ø40mm OD
  • CAP0069 Pressure Balance Cartridge Ø40mm OD
Product Description
NEW Ø40mm Pressure Balance Cartridge
Back to Back 180° Reverse Type
Without Distributor
Option : Noise Reducer
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge

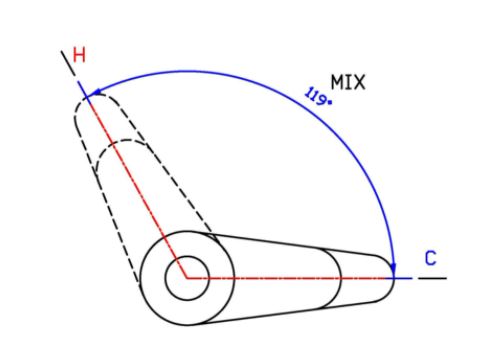

Max. rotary angle 119°
Recommended nut tightening torque 10~12 N.m
Water resistance pressure 500 psi
Max. temperature 90℃(194℉)
Endurance test 20,000 cycles (ASSE 1016-Piston)
80,000 cycles (ASSE 1016-Disc)
Flow rate
Water pressure Mixing
(L/min)
1 bar 11.70
2 bar 15.90
3 bar 18.80
4 bar 22.00
