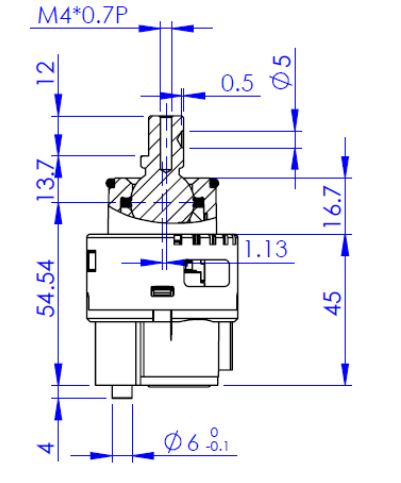

CAP0072 Pressure Balance Cartridge Ø45mm OD

  • CAP0072 Pressure Balance Cartridge Ø45mm OD
  • CAP0072 Pressure Balance Cartridge Ø45mm OD
  • CAP0072 Pressure Balance Cartridge Ø45mm OD
  • CAP0072 Pressure Balance Cartridge Ø45mm OD
  • CAP0072 Pressure Balance Cartridge Ø45mm OD
  • CAP0072 Pressure Balance Cartridge Ø45mm OD
Product Description
NEW Ø45mm Pressure Balance Cartridge
Low Torque Structure Type
With Distributor
  • CAP0072 Pressure Balance Cartridge Ø45mm OD
  • CAP0072 Pressure Balance Cartridge Ø45mm OD
  • CAP0072 Pressure Balance Cartridge Ø45mm OD
  • CAP0072 Pressure Balance Cartridge Ø45mm OD
  • CAP0072 Pressure Balance Cartridge Ø45mm OD
  • CAP0072 Pressure Balance Cartridge Ø45mm OD
Product Description
NEW Ø45mm Pressure Balance Cartridge
Low Torque Structure Type
With Distributor
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge
Max. opening angle 25°
Max. rotary angle 90°
Recommended nut tightening torque 10~12 N.m
Water resistance pressure 500 psi
Max. temperature 90℃(194℉)
Endurance test 20,000 cycles (ASSE 1016-Piston)
80,000 cycles (ASSE 1016-Disc)
Flow rate
Water pressure Hot
(L/min)		 Cold
(L/min)		 Mixing
(L/min)
1 bar 7.80 8.08 14.92
2 bar 11.20 11.64 20.96
3 bar 14.12 14.36 26.28
