FGP0001 Split Plastic Flange

FGP0001 Split Plastic Flange

Product Description

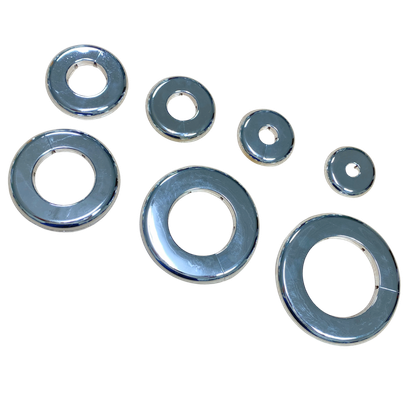

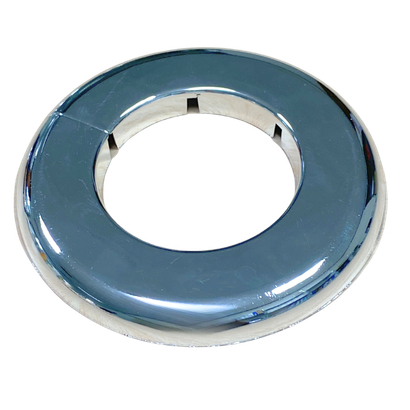

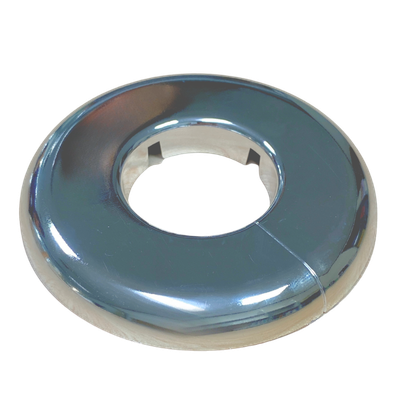

FGP0001 Split Plastic Flange

Specification: IPS or CTS.

Dimensions: 3/8", 1/2", 3/4", 1", 1-1/4", 2", 3", 4", 5", 6", 8".

Finish: Chrome-plated.

Packing: In Bulk Pack, Polybag.

Inquiry Prev Next

Product Specification

Flange sizes variety:

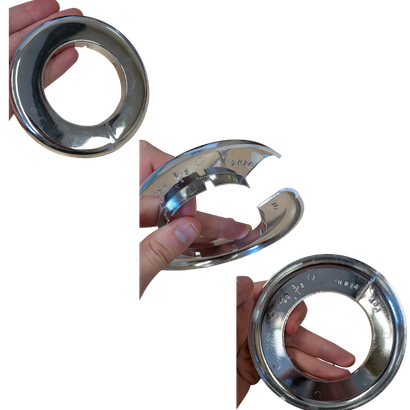

Plastic Flange, 2 pcs designed :
Dimension list	Inch min, ID	Inch min, OD	Inch min, Height	Inch min, Thickness

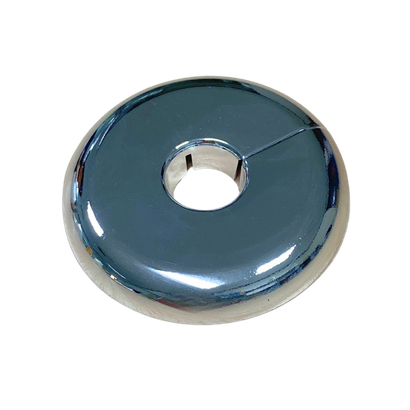

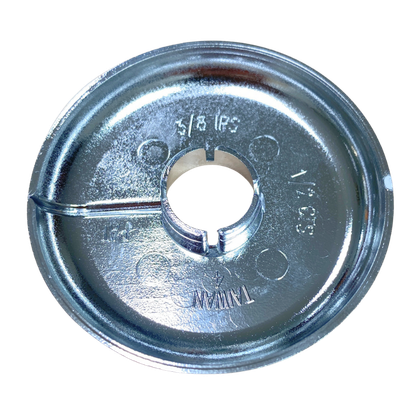

3/8"IPS (1/2"CTS)	0.675	2.510	0.366	0.074

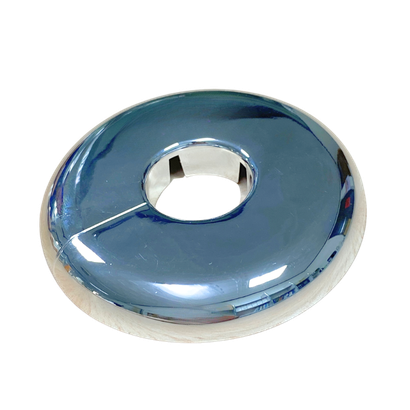

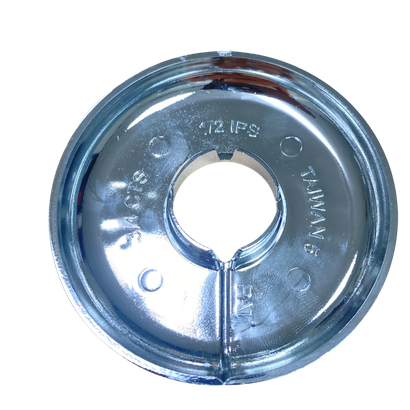

1/2"IPS (3/4"CTS)	0.840	2.870	0.380	0.074
3/4"IPS	1.050	2.960	0.395	0.074
1"CTS	1.125	3.020	0.360	0.074

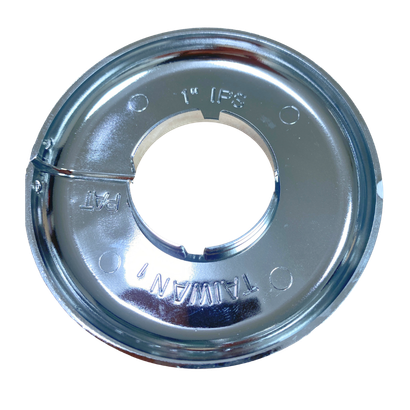

1"IPS	1.315	3.159	0.372	0.074
1-1/4"CTS	1.375	2.245	0.360	0.074

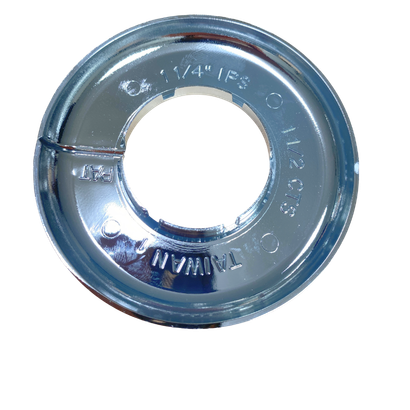

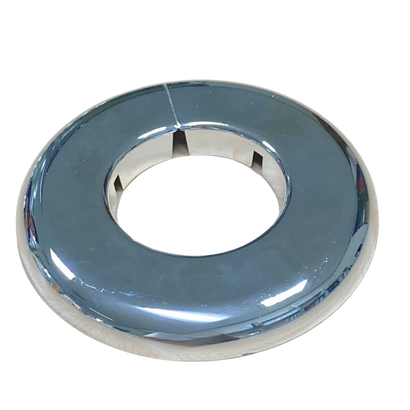

1-1/4"IPS(1-1/2CTS)	1.660	3.520	0.385	0.074
1-1/2IPS	1.900	3.824	0.373	0.078

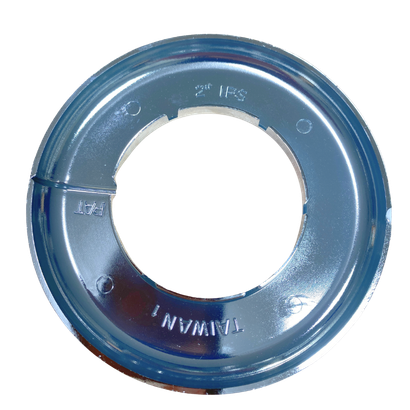

2"IPS	2.375	4.380	0.400	0.078
2"CTS	2.125	4.146	0.380	0.071

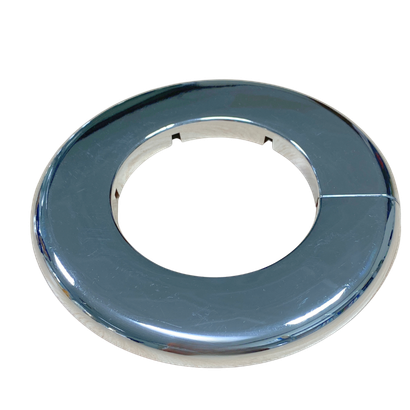

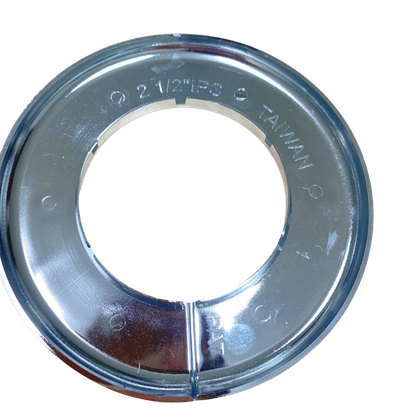

2-1/2"IPS	2.875	5.170	0.365	0.065
2-1/2"CTS	2.625	4.590	0.379	0.077

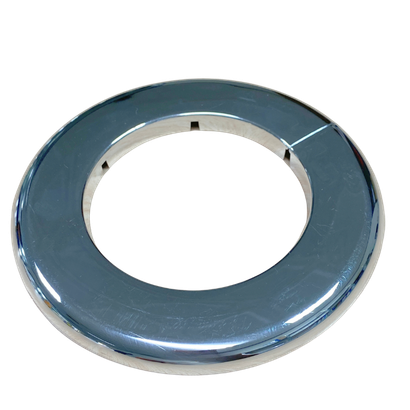

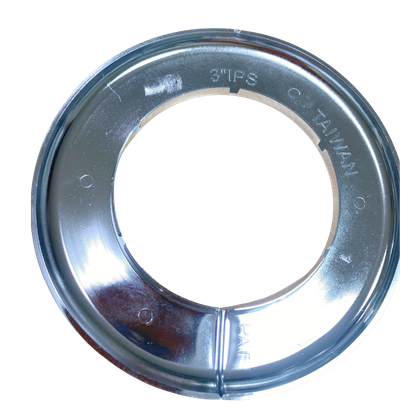

3"IPS	3.500	5.800	0.376	0.077
3"CTS	3.125	5.394	0.379	0.077
3-1/2"CTS	3.625	5.753	0.395	0.077
4"CTS	4.125	6.345	0.390	0.077
4"IPS	4.500	6.850	0.390	0.080
5"IPS	5.563	8.543	0.378	0.080
6"IPS	6.625	9.685	0.365	0.065
8"IPS	8.625	12.834	0.378	0.065
